R.A.D. Auto Machine is a state of the art Engine Rebuilding Facility with full service machine shop capabilities. Our Engines are built to exact specifications while holding race tolerances and utilizing only the best components.
Machining Capabilities Second to None
Rottler F65A CNC Machining Center for blueprinting the block from the main line and camshaft centerline, deck squaring, lifter bore truing, bore spacing corrections, line boring, block end truing, stroker motor clearances, main and cam line corrections.
Darton Sleeve Installations for LS1 , Honda and Nissan blocks are some of the services offered. The Rottler HP6A computerized Cylinder Hone will finish bores with exact cross hatch angles while achieving RA surface finishes required by ring manufacturers holding cylindricity to .0001 - .0002.
R.A.D offers in house crankshaft balancing, crankshaft grinding, line boring,magnafluxing, shot peening , porting polishing, Dyno Tuning and Dyno testing. Our testing and break in capabilities include a Chassis Dyno, Engine Dyno and Super Flow flow bench.
Our cylinder head services include 3 -5 angle valve jobs, porting and polishing services and flow testing on our Super Flow SF660 flow bench.
All of our Performance Engines are Dyno tested and broken in on our state of the art fully computerized Engine Dynamometer.
Rottler F65A CNC Block Blueprinting
Rottler HP6A Diamond Cylinder Honing
Rottler SGF8 Seat & Guide Work
Super Flow SF600
3-5 Angle Valve Jobs
Cylinder Head Porting &
Flow testing
Crankshaft Grinding
Crankshaft Balancing
WVN CG240
WVN XL2000A

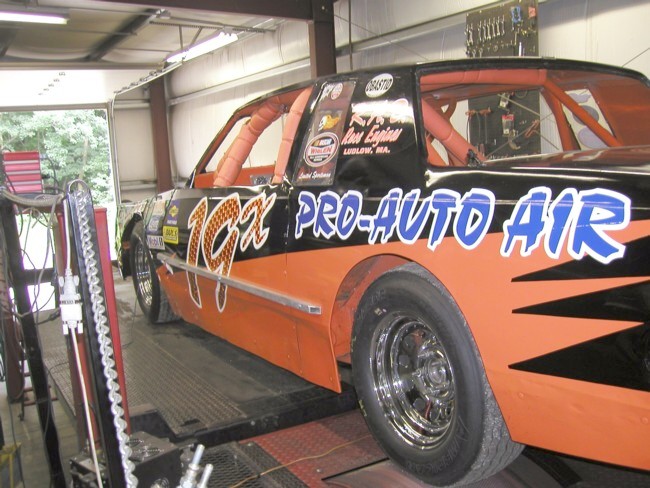

Chassis Dyno Service
Engine Dyno Service Testing & Break In
Our Specialized services include : Darton and AEBS Sleeves Installation In Honda, Nissan and LS1 Blocks utilizing our proven CNC Machining Method. Sleeves are Installed to exact blue print specifications holding the tightest tolerances.
Rottler VR416 Centerless Valve Grinding
.0002 Concentricity
RAD Auto Machine " Performance Engine Building" with complete in house CNC Machining Capabilities and Dyno Testing both Chassis and Engine Dyno Systems
CNC Block Prep
Computer Diamond Hone
ENGINE REBUILDING AUTOMOTIVE MACHINE SHOP
1- 413-583 - 4414

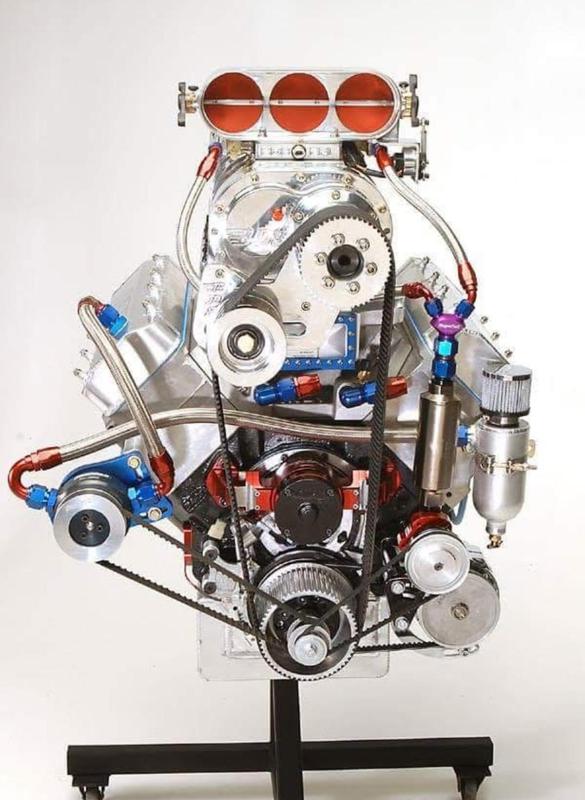

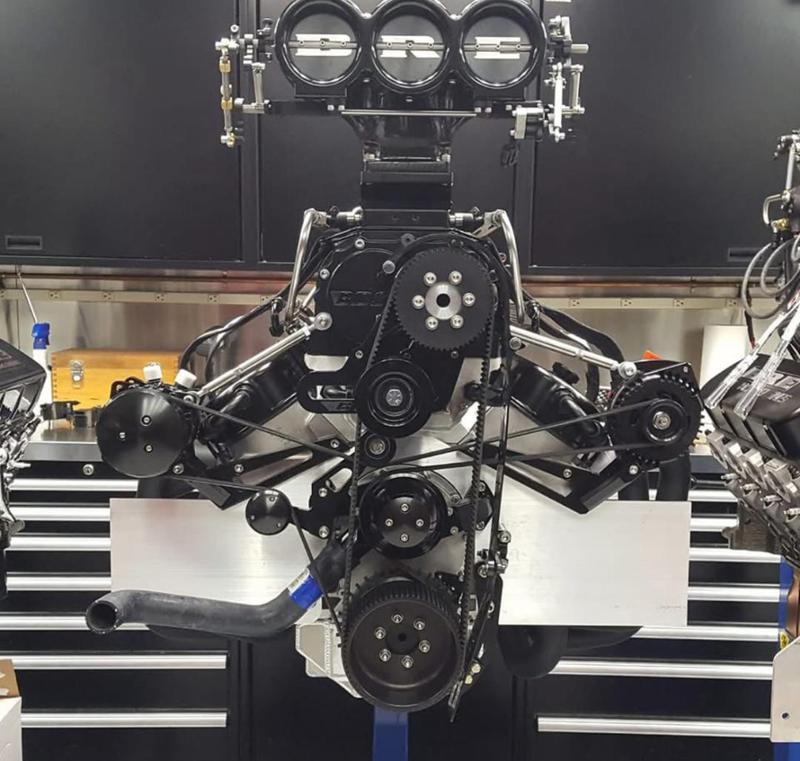

Custom Engine Building
R.A.D Auto Machine has Invested in Rottler CNC Engine Blueprinting and Machining Equipment for Precision Block Probing and Blueprinting. Cylinder Bore finish ie. crosshatch, size control and surface finish are critical. The Rottler HP6A Computerized Diamond Hone will produce exact cross hatch patterns while meeting specific RA Finish requirements. Holding .0001 roundness and straightness is a bonus and achievable with the HP6A. Our Rottler equipped Valve department enables us to achieve tolerance of .0002 concentricity on the Valve Face and Valve Seat diameter.
80 Ravenwood Drive Ludlow, MA 01056
Automotive Machine Shop Services
Performance Machine Shop and Engines Since 1989
New Arrival Rottler F79 A CNC Machine will Handle Medium Range Diesel Block . Cummins Caterpillar, Detroit, John Deere Engines Rebuilding.Cylinder Boring, Decking Counter Bore Repair, Line Boring.
Rottler F79A CNC Machine In Action Machining a Detroit Diesel Engine Block
Diesel Engine Block Machining
Boring Decking
Sleeving
Upper and Lower Counter Bore Repair
Line Boring
Dimension are Probed the Bored with blueprint precise process.Counter Bore Repaired with CNC * Circle Interpolation Process State of the Art Machining Second to None.
* What is Circle Interpolation ? A circular path that requires multi-axis tool movement. Full arcs and partial arcs require circular interpolation.
Diesel Engines: Caterpillar, Cummins, Detroit, Komatsu, John Deere , Isuzu, Mercedes, Kabota , Deutz, Mack.........................
Rottler F79A CNC Probing And Engine Block Blueprinting Routine
Rottler F79A CNC Information >>>
View Rottler F79A In action review cababilies and capacity on above link button. Video and Image links.

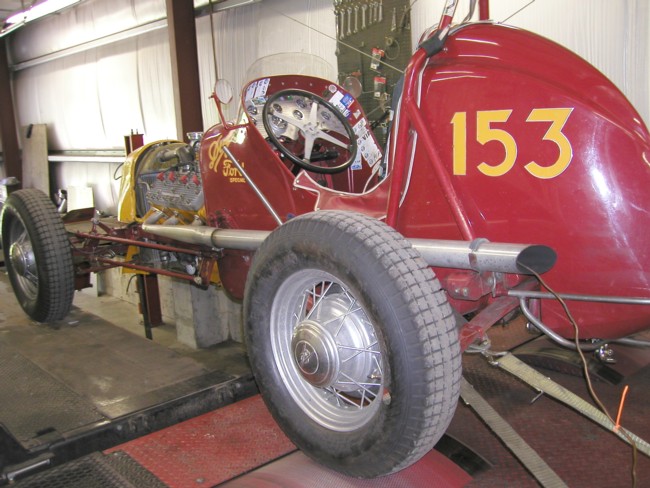

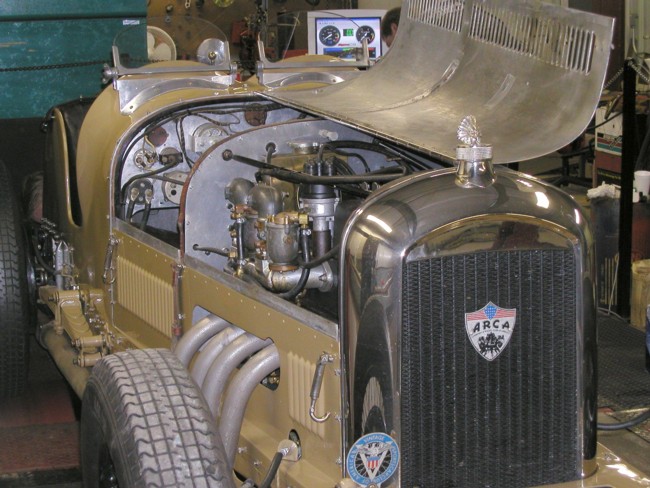

Vintage Race Engine Rebuilding
